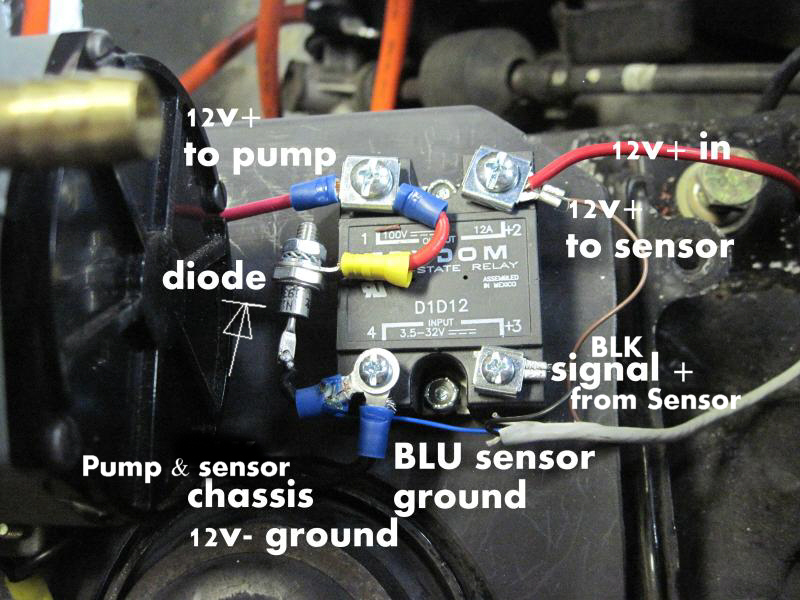

this is the wiring of the SSR (instead of mechanical contactor in big ol' square D pressure switch). I couldn't use a cheap auto relay because the pressure sensor doesn't send enough of a signal (80 mA max) to close the typical relay which requires 200mA or more. |
