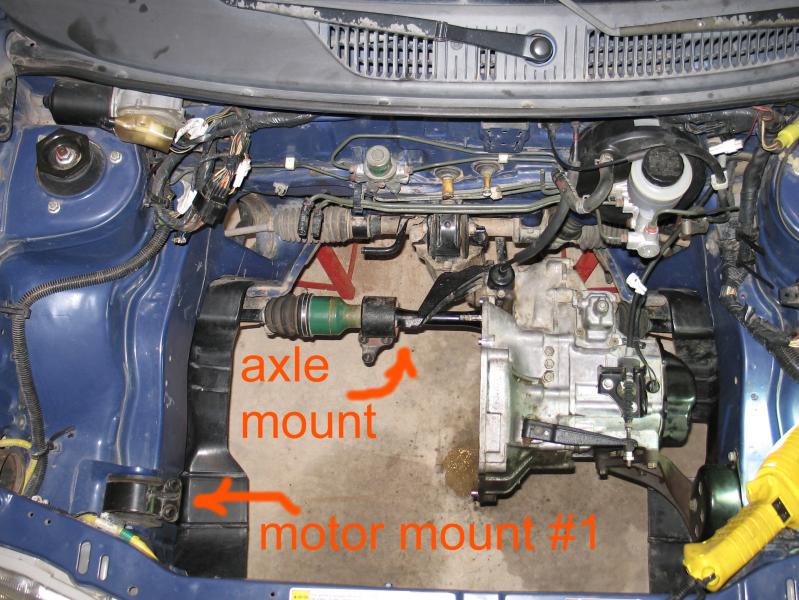

Here is the now-empty engine bay... Begging to be filled with electric motor. I poked around, and did not find off-the-shelf adaptors to the existing motor mounts. This appears to be one of the minor little fab challanges of DIY.

I am planning to put together the motor/adaptor plate next, and bolt it in so I can rough out the layout for battery racks and component board mounting. I think that I may fab a bracket to tie the axle mount to the motor mount AND serve as a mounting bracket for the vacuum system to isolate from the car chassis. The passenger side motor mount needs to fit to the electric motor bracket, and leave room for a battery rack....
